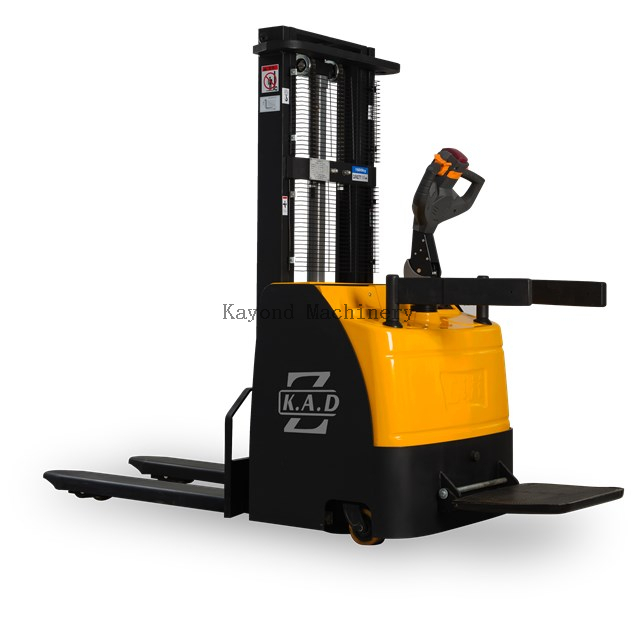

CDD1530
Application
The model is suitable for lifting and moving in small and medium warehouse and manufacturing facilities, where medium height rack system with narrow aisle is applied. However, the demands in big factories places also increases dramatically recently, where either have similar material storage area, or have individual working areas need self-respond equipment.
1.Large capacity traction power battery
2.Drive shock absorption technology
3.High Frequency Intelligent Charger
4.Anti-slip belt shock absorber pedal
Optional configuration
1.Special purpose for cold storage
2.Extension fork/Leg
3.Safety arm
4.Fast and Slow Proportional Rise and Decline
Our Advantages
1. Contro handle
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.
2. Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
3. Machine Parts
Strong cylinder and chain make fork run smoothly. 1-stage,2-stage,3-stage mast can be selected.
4. Design
Humanized design, operation can maintain a safe distance, will not be tired after long time work.
Model | |||
Features | Drive system | Battery | |
Driving mode | Standing | ||
Load Capacity | KG | 1200/1600/2000 | |
Load Center | MM | 500 | |
Weight | Weight(With battery) | KG | 830/880/910/940/970 |
Wheels | Material | PU | |
Size | Lifting Height | MM | 1600/2000/2500/3000/3500/4000/5000 |
Lowest Mast | MM | 2080/1580/1830/2080/2330/1820/2020 | |
Max.Height when operating | MM | 2080/2730/3230/3730/4230/4460/4960 | |
Min.Height of Fork | MM | ≤90 | |
Length | MM | 2130 | |
Width | MM | 850 | |
Fork Length | MM | 1070 | |
Wheelbase | MM | 1430 | |
Fork Outside Width | MM | 550/680 | |
Fork Inside Width | MM | 225/355 | |
Min.Turning Radius | MM | 1738/2099 | |
Performance data | Driving Speed (Empty/Full Load) | MM/S | 6.5/5.0 |
Lifting Speed (Empty/Full Load) | MM/S | 80/50 | |
Descending Speed (Empty/Full Load) | MM/S | 120 | |
Max.Gradient (Empty/Full Load) | ° | 6 | |
Brake | Electromagnetic brake | ||
Driving Motor | KW | DC/0.75/1.2/1.5 | |
Lifting Motor | KW | DC/2 | |
Battery | Capacity | V/Ah | 24/120/180/210 |
