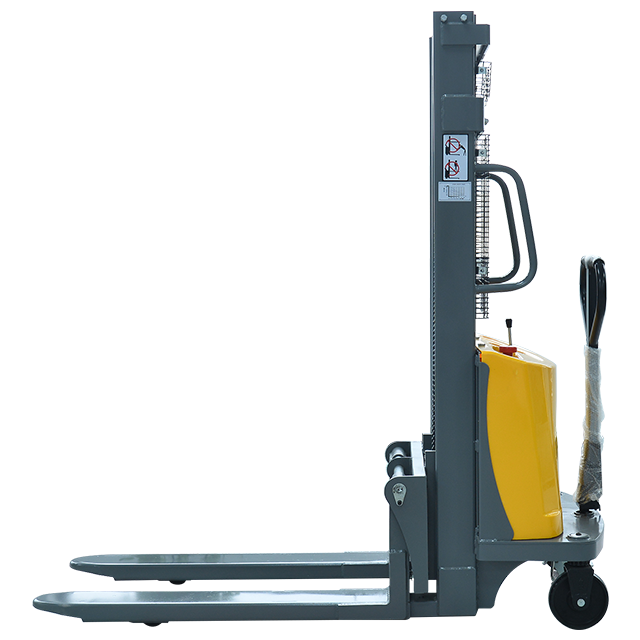

Used in warehouse or container, to moving and stacking goods. The semi-electric stacker can save much labor when stacking. It can cross very narrow space and easy to carry it everywhere.
1.Parking foot braking function
2.Design of Chain Steering Drive
3.High Frequency Intelligent Charger
4.Adjustable pitch sleeve fork
Optional configuration
1.lengthen fork, widen fork leg
2.Forged fork
Our Advantage
1. Nylon wheel: Suitable in both cement hard ground or painted floor,strong and wearable.
2. Foot Brake
With foot brake, it is easy to operate, time-saving and labor-saving, and enhances safety.
3. Operation Panel
Easily operated panel, beautiful painting and design.
4. Customized Leg
The fork and leg can be customized to different size ,which is applicable for different pallets.
Forging fork is firm and hard to deform.
Model | CDS1016 | ||
Features | Drive system | Battery | |
Driving mode | Standing | ||
Load Capacity | Q(kg) | 1000/1500/2000 | |
Load Center | C(mm) | 500 | |
Weight | Weight(With battery) | Kg | 345/390/410/430 |
Wheels | Material | PU/NYLON | |
Size | Lifting Height | H3(mm) | 1600/2000/2500/3000/3500 |
Lowest Mast | H1(mm) | 2090/1590/1840/2090/2340 | |
Max.Height when operating | H4(mm) | 2090/2740/3240/3740/4240 | |
Min.Height of Fork | S(mm) | 85 | |
Length | L(mm) | 1740 | |
Width | B(mm) | 770 | |
Fork Length | L1(mm) | 1070 | |
Fork Outside Width | B1(mm) | 550/680 | |
Fork Inside Width | B2(mm) | 305 | |
Min.Turning Radius | Wa(mm) | 1500 | |
Wheelbase | Y(mm) | 1420 | |
Motor | Lifting Motor | KW | DC/2.2 |
Battery | Capacity | V/Ah | 24/120 |
